Applied Fin

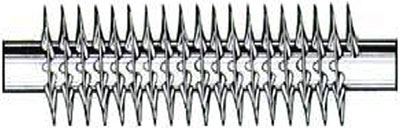

Applied Fin Tube is made with strip wrapped under tension around the base of the tube. Fins are welded to the base tube at the strip ends.
For this type of finned tubes, depending on material, fins/meter, and strip material, our productive capacity is over 1000 meters per day.

MATERIAL SPECIFICATIONS

Fin materialN° fins per meterStrip thicknessProduction capacity
All type of materialFrom 50 to 500From 0,4mm. to 0,5mmMore than 500 meters per day
Tube materialTube thicknessO.D. tubeLenght available
All type of material1,00mm minimumFrom 10,00mm. to 200,00mmAll lenghts up to 8 Meters

APPLICATIONS

Cooling and heating in general
